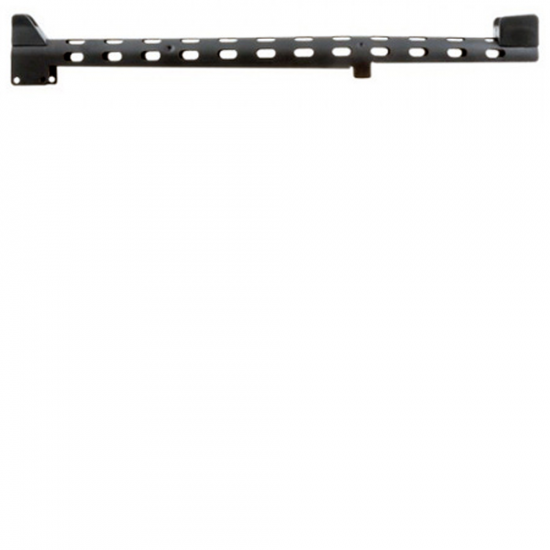

Deluxe Heatshield w/Ghost Ring Sights Installation Guide

Step 1: Begin by placing the guidepost of the small Ghost Ring Sight into the pilot hole at the end of the heatshield.

Step 2: To install the rear ghost ring sight, begin by placing the guidepost of the large ghost ring sight into the pilot hole at the rear of the heatshield.

Step 3: Using a phillips head screwdriver, install the provided #6 x 3/8” screw at the front of the heatshield. Make sure the ghost ring sight is centered before the screw is tightened.

Step 4: Using a phillips head screwdriver, install the provided #6 x 3/8” screw at the rear of the heatshield. Make sure the ghost ring sight is centered before the screw is tightened.

Step 5: Begin by removing the barrel from the shotgun. Once removed widen the front clamp on the front of the heatshield 1/8” and slide the heatshield over the barrel and slide to the rear. Bend the rear tabs to clamp tightly onto the barrel using a cloth to prevent scratches on the heatshield.

Step 6: After reinstalling the barrel, slide the heatshield so that it touches the receiver, except on the Winchester which needs to be kept ½” from the receiver.

Step 7: Tighten the front clamp around the barrel.

Step 8: Install the provided (2) screws and nuts and tighten securely.
Note: Slide the forend to check for any interference between the forend and the heatshield. File tabs or forend as required.
