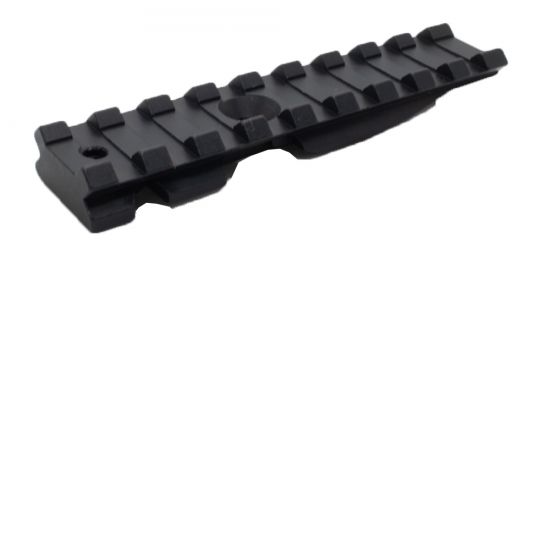

Argentine 1891 Short Rifle and Carbine Scout Mount Weaver Style - S&K Scope Mounts
Item #: SKARG90
S&K Mounts ARG90
UPC: none
Weight: 2.00 pounds
Product Description
No drilling, tapping or major alteration. Guaranteed to hold zero. Can be removed and reinstalled easily. Made in the USA of top grade military allan
aircraft aluminum. Use Weaver type rings (not included). Requires a long eye relief scope.
Installation instructions for the ARGENTINE 1891
Push the pin out at the rear of the rear flip sight. Don’t loose this pin as it will be used to install the S&K mount. Remove the flip up sight, then the spring by sliding it forward and lifting it out. The spring may require you to remove a screw that holds it in place.
Installation instructions for the ARGENTINE 1891
Push the pin out at the rear of the rear flip sight. Don’t loose this pin as it will be used to install the S&K mount. Remove the flip up sight, then the spring by sliding it forward and lifting it out. The spring may require you to remove a screw that holds it in place.
Slide the special flange nut into the undercut at the front of the sight where the spring was. Keep the smooth edges toward the front & rear. Place the mount over the special flange nut & align the hole in the side of the receiver where the pin was removed with the side hole in the mount. Install the pin you removed from the OEM ladder sight.
Put the 10-32 x 3/8 flat head screw through the mount and into the nut & tighten loosely. Put the 10-32 x 5/16 set screw down through the tapped hole in the top of the mount and tighten against the receiver. Tighten the set screw only as tight as you can using the short end of the allen wrench. Tighten the 10-32 x 3/8 flathead screw. The purpose of the set screw is to keep pressure on the side pin so it can’t back out & take up any slop their may be between the pin & holes.
