98K Mauser Scout Spanish and Brazilian 1934 Scope Mount Weaver Style - S&K Scope Mounts
Product Description

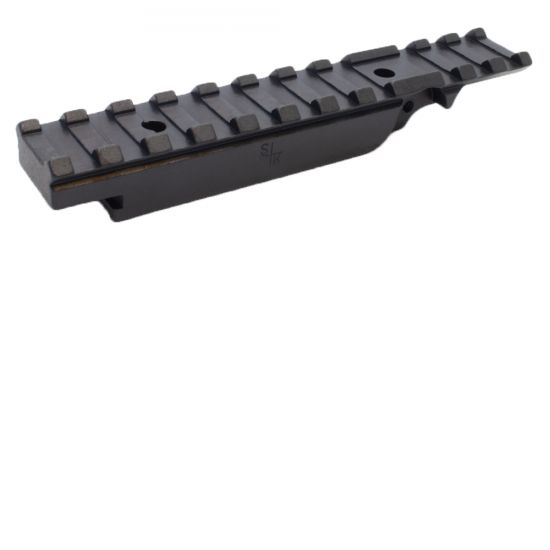

Scope Mount for Spanish and Brazilian 98K Mauser Scout. Does not include rings. Uses weaver style rings.
No drilling, tapping or major alteration. Guaranteed to hold zero. Can be removed and reinstalled easily. Requires a long eye relief scope. Made in the USA of top grade military allan
aircraft aluminum. Rings not included - accepts Weaver rings.
Installation instructions for the MAUSER 98K SCOUT
Remove the rear sight from the rifle. Keep the S&K mount centered over the rear sight area & at the same time slide the bottom foot of the mount into the undercut at the rear while pushing down on the front. You may need to tap the mount lightly back into the undercut.
Remove the rear sight from the rifle. Keep the S&K mount centered over the rear sight area & at the same time slide the bottom foot of the mount into the undercut at the rear while pushing down on the front. You may need to tap the mount lightly back into the undercut.
The two tapped side holes in the mount need to line up with the holes in the receiver where the pin was removed. It is very important that these holes line up to keep from damaging the threads when the screws are installed. Install the two 6-32 screws through the holes where the pin was removed & into the S&K mount. LIGHTLY TIGHTEN THESE TWO SCREWS & DO NOT RETIGHTEN.
Center the mount at the rear & install the 10-32 x ½” sets screws into the top of the mount & tighten. You can adjust windage some by loosening the 10-32 set screws & moving the rear of the mount sideways & retighten. WHEN REMOVING THE MOUNT DO NOT TRY TO REMOVE THE TWO 6-32 SCREWS UNTIL LOOSENING THE SET SCREWS ON TOP OF THE MOUNT.
